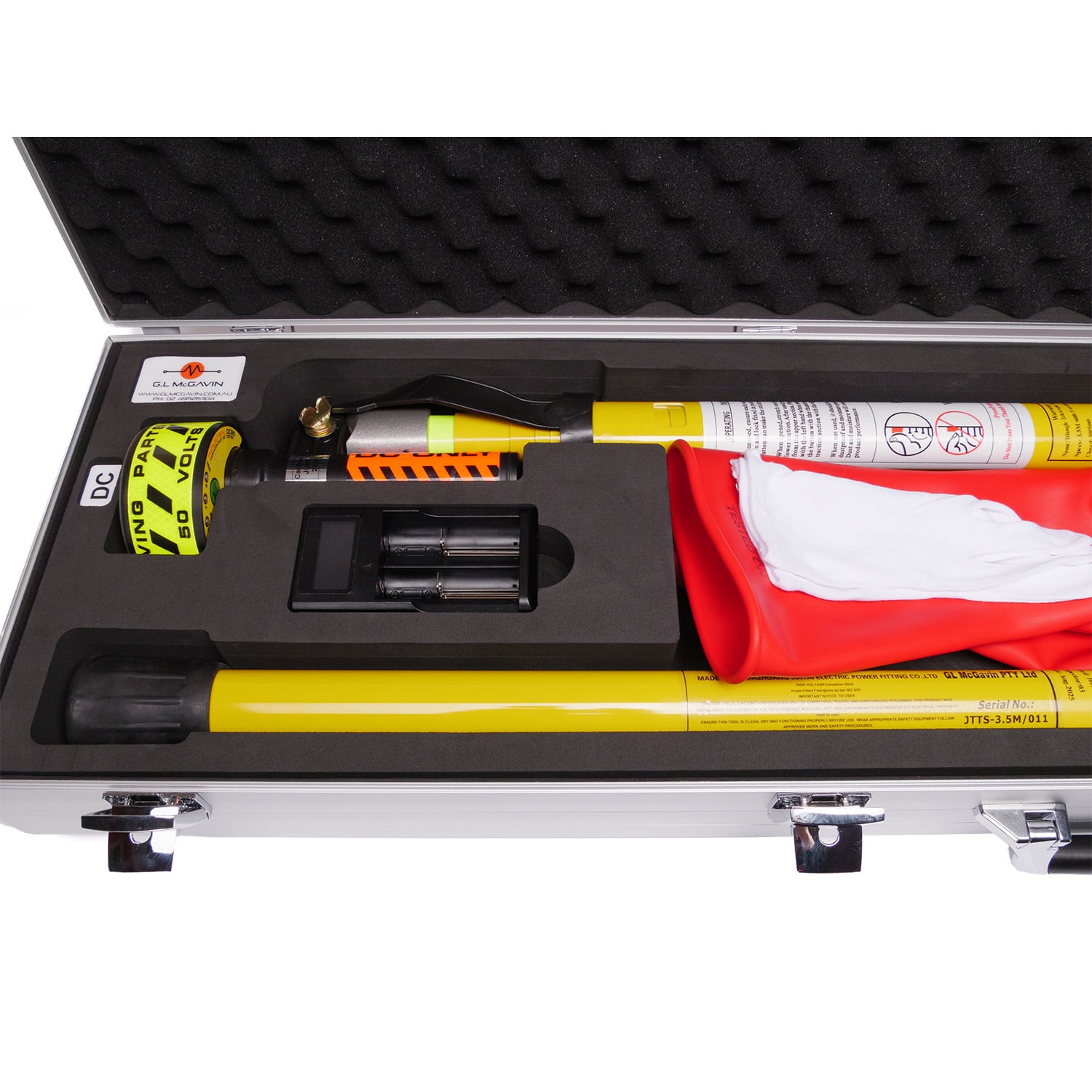

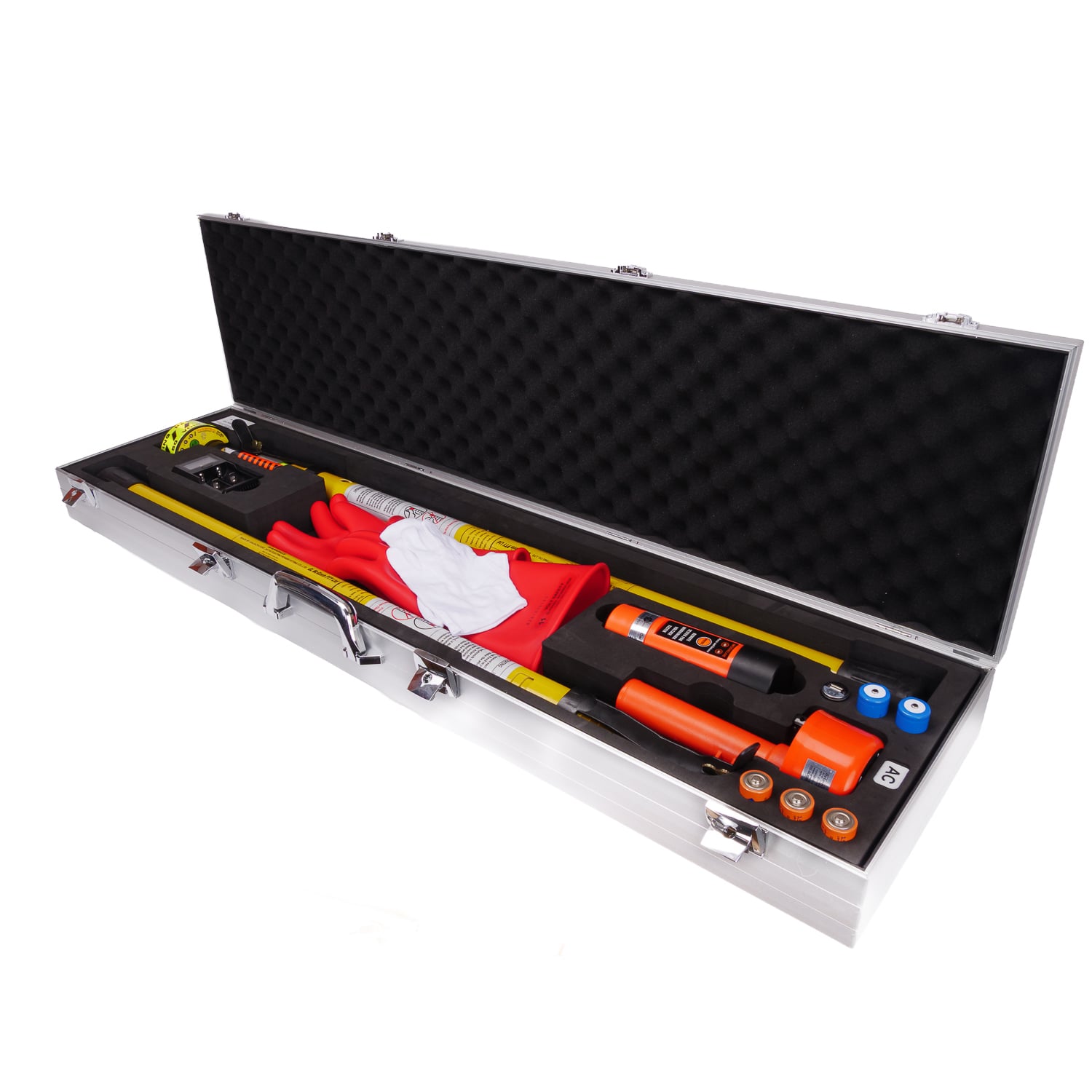

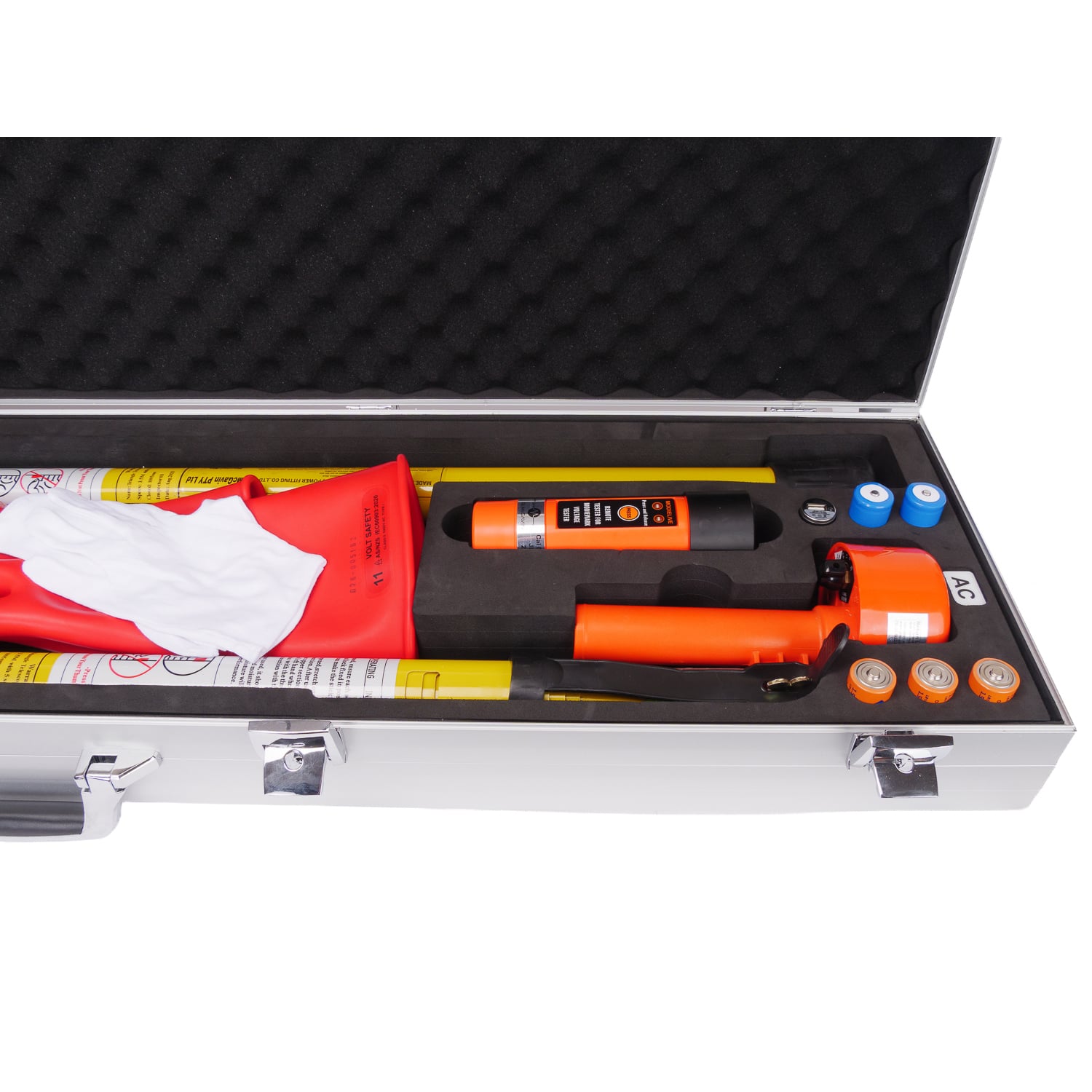

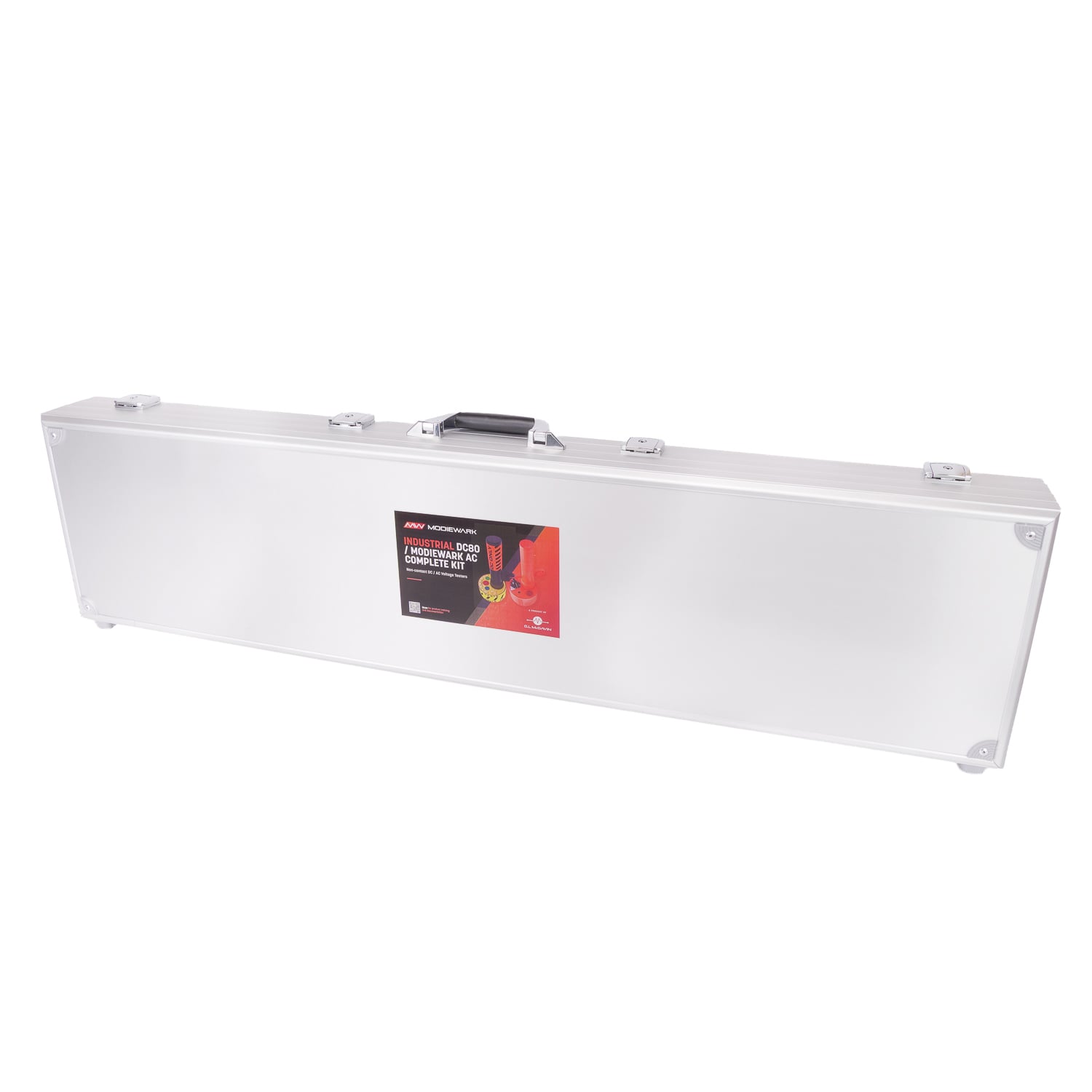

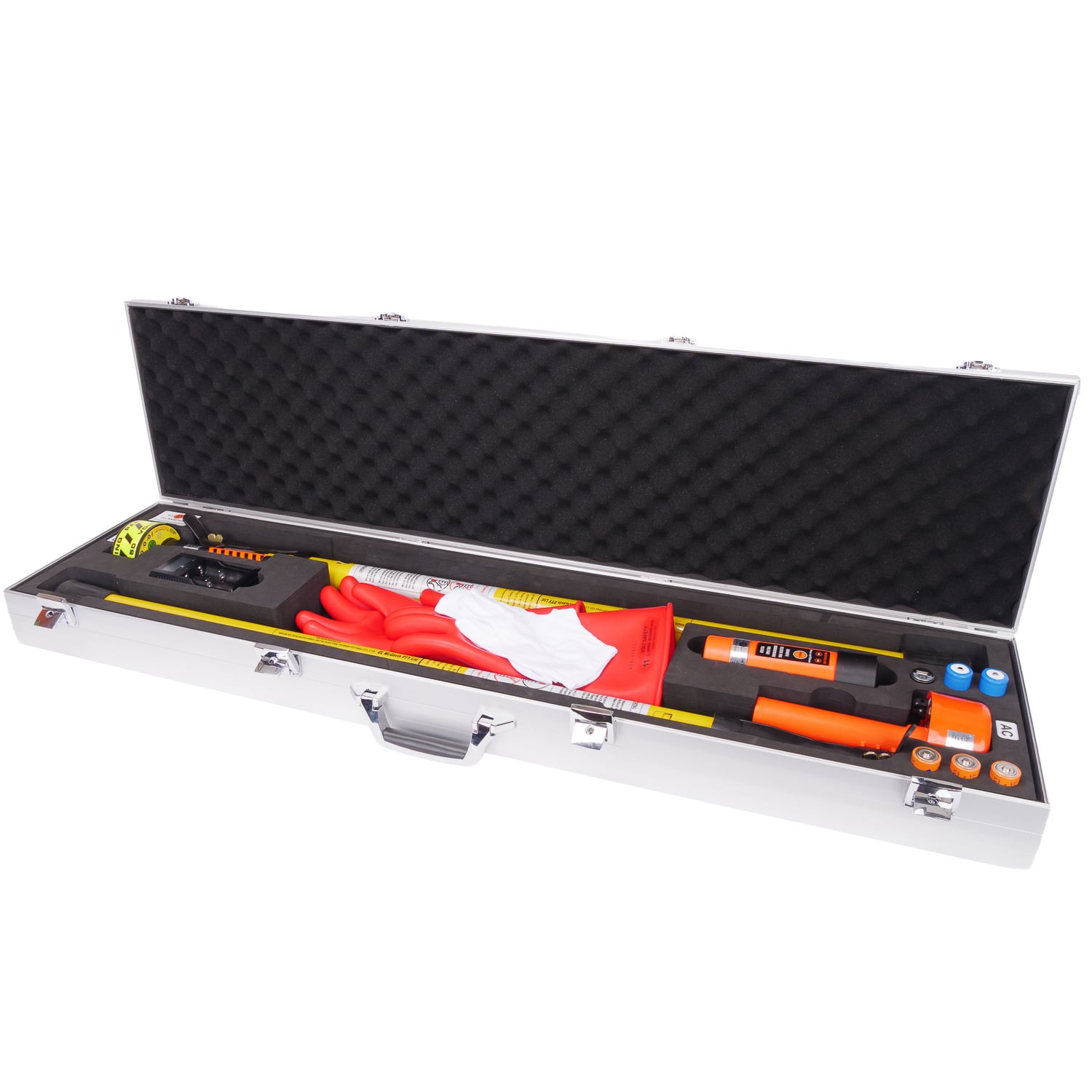

This kit comes with the DC80 tester and a high voltage AC tester in an easy fit metal suitcase. Kit includes AC and DC tester batteries and charger.

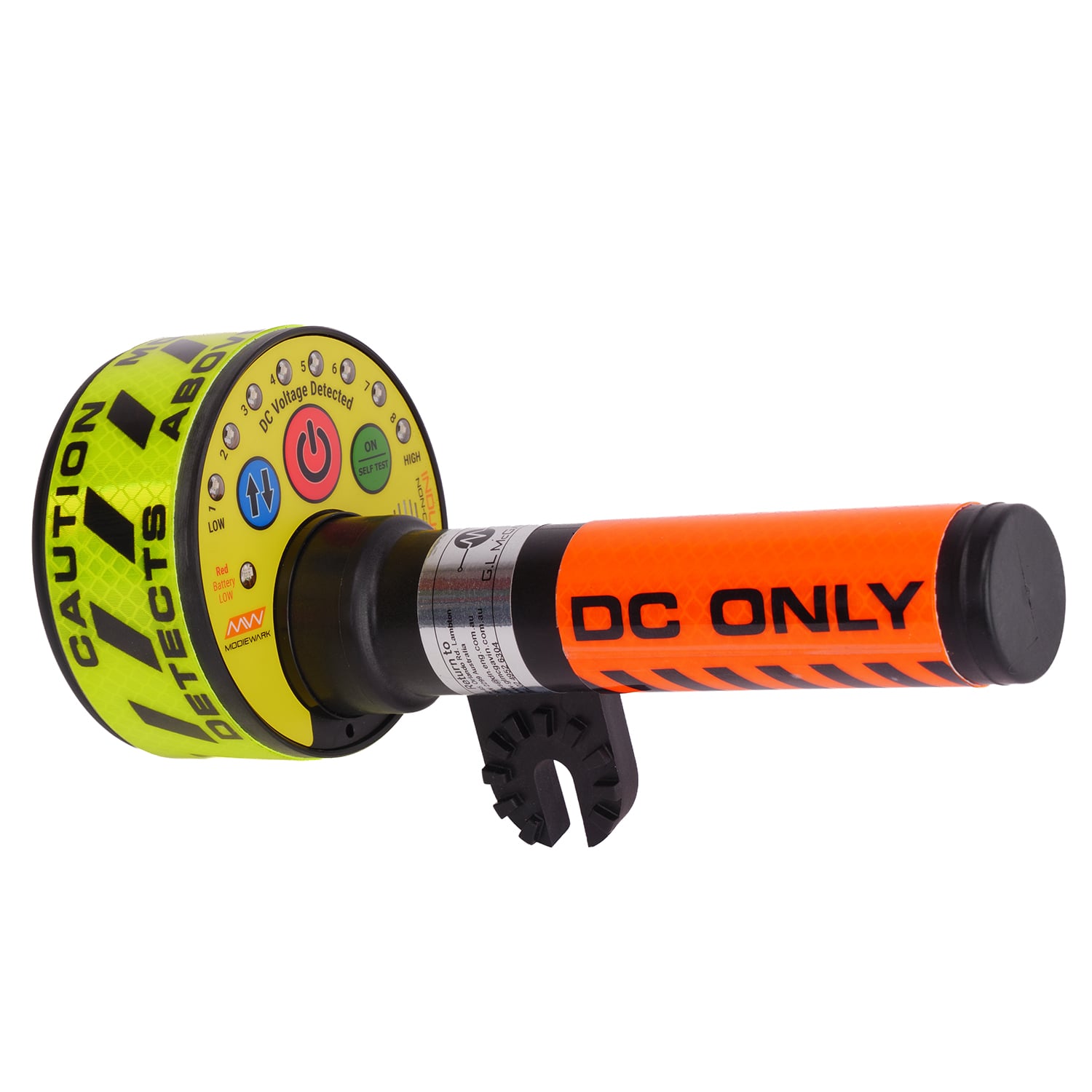

Specifically designed for direct current detection in industrial environments, the non-contact DC80 is a global breakthrough.
It is the world’s first genuine DC non-touch voltage tester. Safe, fast and reliable.
Simply point the tester at a potentially live DC source to determine if there is voltage present. The sound it makes will alert you to danger without any need for physical contact. It has 8 adjustable sensitivity settings, meaning the operator can adjust it to voltages from 50 volts to over 1,000,000 volts. The Modiewark is the safest choice, in any environmental disaster or accident. Modiewark is the only product in the world to offer a truly non-touch DC tester you can rely on.
The DC80 is a must have when working with DC power on:

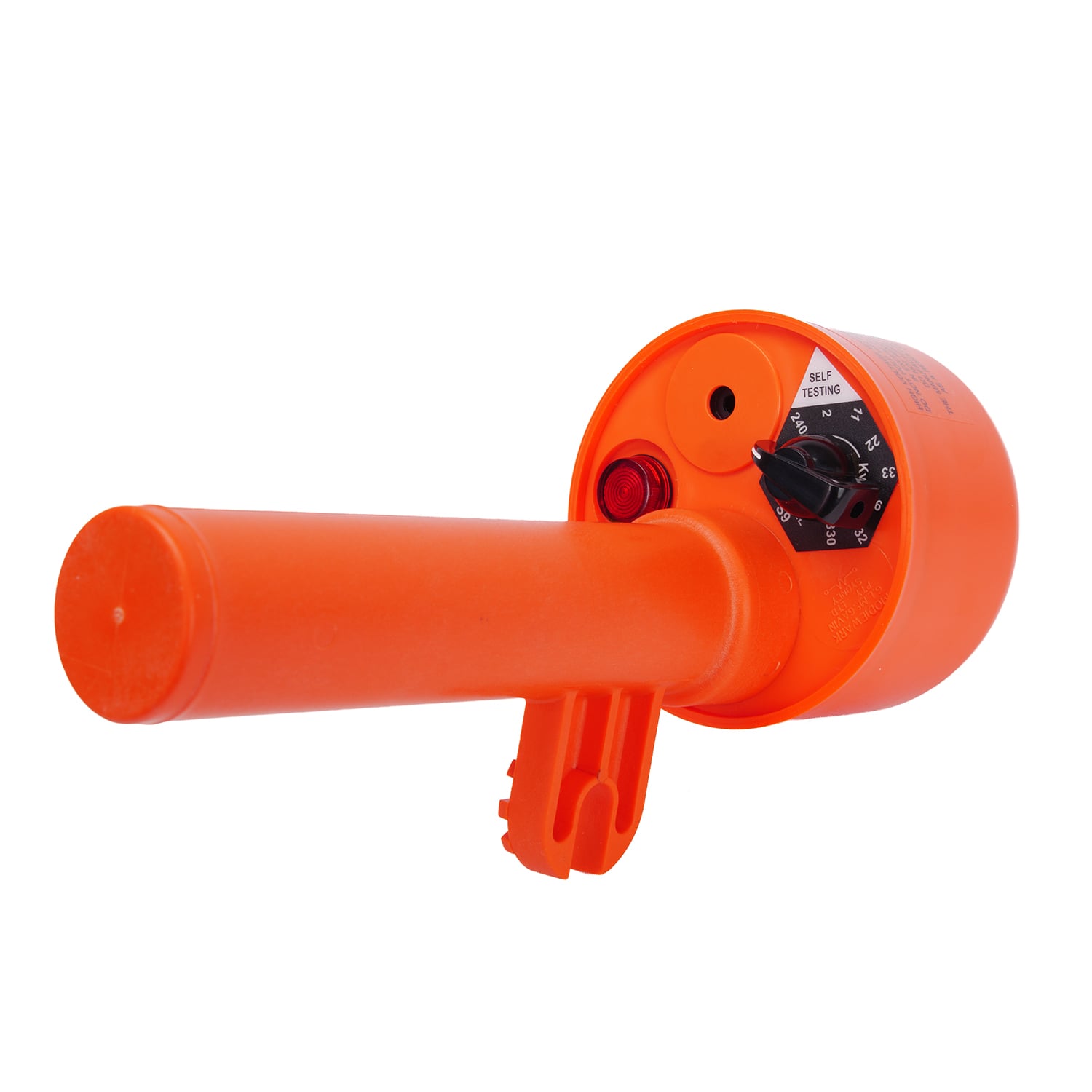

Designed for all industries that use AC electricity, the Modiewark AC comes in an array of voltage settings for any environment… from 50 to over a million volts
The Modiewark has been used by industry professionals since the early 70’s for live or dead voltage determination of overhead power lines and underground power at URD test points.
The Modiewark AC has two main functions, firstly as a proximity device to determine live or dead situations and then as a touch device to verify the tester has physically reached the AC field around designated mains under test.
The unique nature of the sensor plate within the unit allows for directional checks such as checking low voltage when high voltage is nearby. Induced voltages on isolated conductors are checked by increasing the Modiewark’s sensitivity.
The Modiewark AC is a must have when:
The Modiewark non-contact voltage tester can be manufactured with a selection of voltages ranging from 110/240 volts to 750 kilovolts.
We provide a selection of common voltages in our standard range shown below. Custom voltages ranges can be provided per customer’s request through consultation with our helpful sales staff.
Voltage levels stated are between phase voltages. Voltages displayed in bold are URD test point settings.
If you would like to Purchase an Australian model, select from our range below to go to our shopping cart.
|S4A||OFF, 240V, 2kV, 6.6kV|
|S4B||OFF, 240V, 2kV, 6.6kV, 11kV|
|S4C||OFF, 240V, 2kV, 5kV, 11kV|
|AIS||OFF, 240V, 1kV, 6.6kV, 33kV|
|VR||OFF, 240V, 2.2kV, 6.6kV, 11kV, 22kV|
|SECV||OFF, 240V, 6.6kV, 11kV, 22kV, 66kV|
|MWB||OFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV|
|RTC||OFF, 240V, 5kV, 6.6kV, 11kV, 12.7kV, 22kV, 33kV|
|S9||OFF, 240v, 2kV, 11kV, 22kV, 33kV, 66kV, 132kV, 330kV|
|S9SA||OFF, 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV|
|CSA||OFF, 240V, 4.2kV, 15kV, 25kV, 35kV, 69kV115kV, 230kV|
|NZ||OFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV|
|SEAQ||OFF, 240V, 3.3kV, 6.6kV, 11kV, 33kV, 66kV, 110kV, 275kV|
|ETSA||OFF, 240V, 3.3kV, 7.6kV, 11kV, 33kV, 66kV, 132kV, 275kV|
|NM||OFF, 240V, 1kV, 3.3kV6.6kV, 11kV, 22kV, 33kV|
|NRCC||OFF, 240V, 1kV, 3.3kV, 6.6kV, 11kV, 33kV, 66KV, 132kV|
|WA1||OFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV, 132kV|
|S7||OFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV|
|S7A||OFF, 240V, 11kV, 33kV, 66kV, 132kV, 330kV|
|CIG||OFF, 240V, 415kV, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV|
|ABC||OFF, 240V, 11kV, 33kV, 66kV, 132kV|
|VRS||OFF, 240V, 1kV, 2.2kV, 6.6kV, 11 kV, 22kV|
|HEC||OFF, 240V, 6.6kV, 11 kV, 22kV, 44kV, 88kV, 110kV, 220kV|
|WRA||OFF, 240V, 4.2kV, 15kV, 25KV, 35kV, 48kV, 69kV, 15kV, 25kV, 35kV|
|RTC||OFF, 240V, 5kV, 6.6kV, 11KV, 12.7kV, 22kV, 33kV|
|VRS||OFF, 240V, 1kV, 2.2kV, 6.6KV, 11kV, 22kV|
|S10A||OFF, 240V, BATT, 4.8kV, 7.2KV, 16kV, 2.4/4.2kV, 4.8/8.3kV, 8.0/13.8//7.2/12.5kV , 14.4/25//16/27.6kV, 44kV, 69kv|
|S11A||OFF, 240V, 2.4/4.2kV, 4.8/8.3kV, 7.2/12.5KV, 8/13.8kV, 14.4/25kV, 16/27.9kV, 44kV, 69kV, 115kv, 500kv|
|CUSTOM||Choose your own voltage combinations|
These Modiewark models shown above are for Australian power lines. For more Information on American models please visit SailsburybyHoneywell.com
|Charge Time||2 x batteries 7 Hours|
|Voltage sensing range||50 to ∞ VDC|
8 high intensity Leds
90 db piezo buzzer
-20 to 65 C deg
IEC IP6X (Safe when exposed to heavy rain).
Rechargeable Lithium-ion battery 1-day life in rigorous activity.
ESD POM (Acetyl) Black
Glass filled polypropylene
These values are estimates within 90% for prototype specs.
|Voltage sending range||50V AC to 750kV AC|
|Light source||Three High Intensity LEDs|
|Sound source||Electromagnetic piezo 85 dB @ 5cm (1.9″)|
|Operating temperature||-40 to 65c (-40 to 149F)|
|IP range||IP 63|
|Weight||900g (without batteries)|
Width: 65.85mm (9″)
|Voltage setting range||3 x C size Alkaline|
Positive to handle thread
|Dimensions||Length: 240mm + spout length |
Width: 65.85mm (9″)
Cap diameter: 90mm (3.5″)
Weight: 1.2kg (150mm spout)
|Battery type||50V AC to 33kV|
|Battery life||(standard C size Alkaline) |
ON (no alarm) 140+ Hours
ON (Self test) 90 + Hours
ON (alarm on) 60+ Hours
OFF No current drawn, battery shelf life
