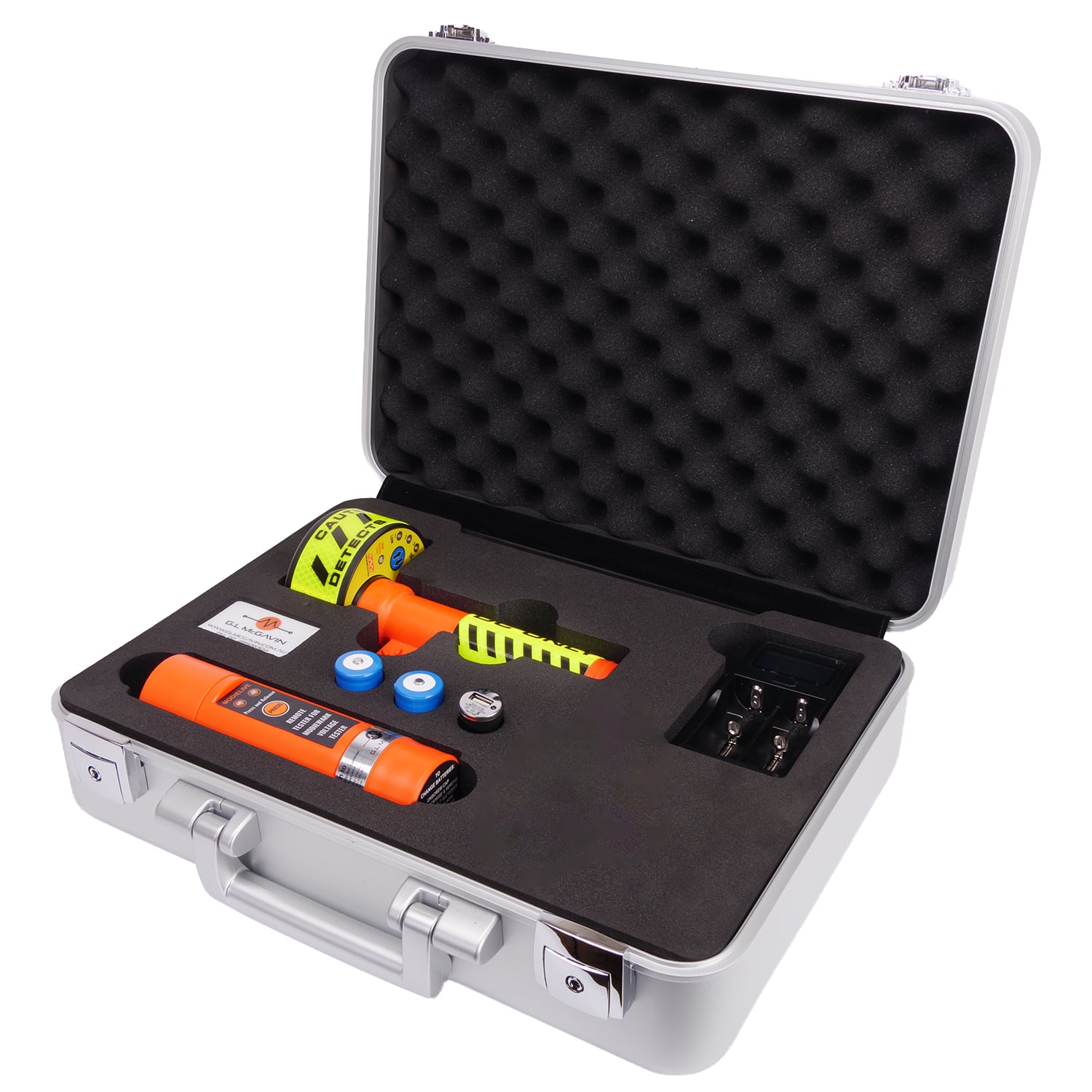

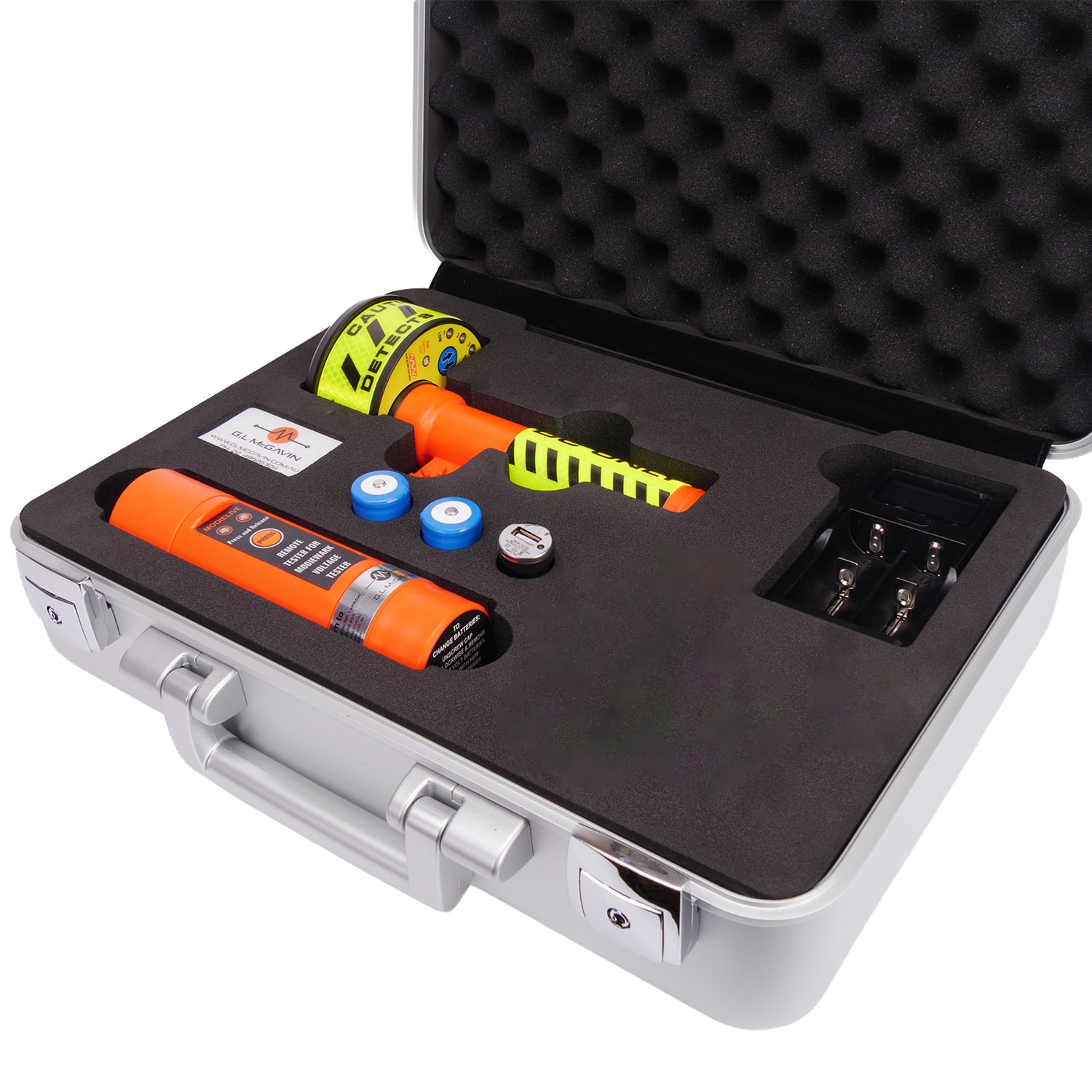

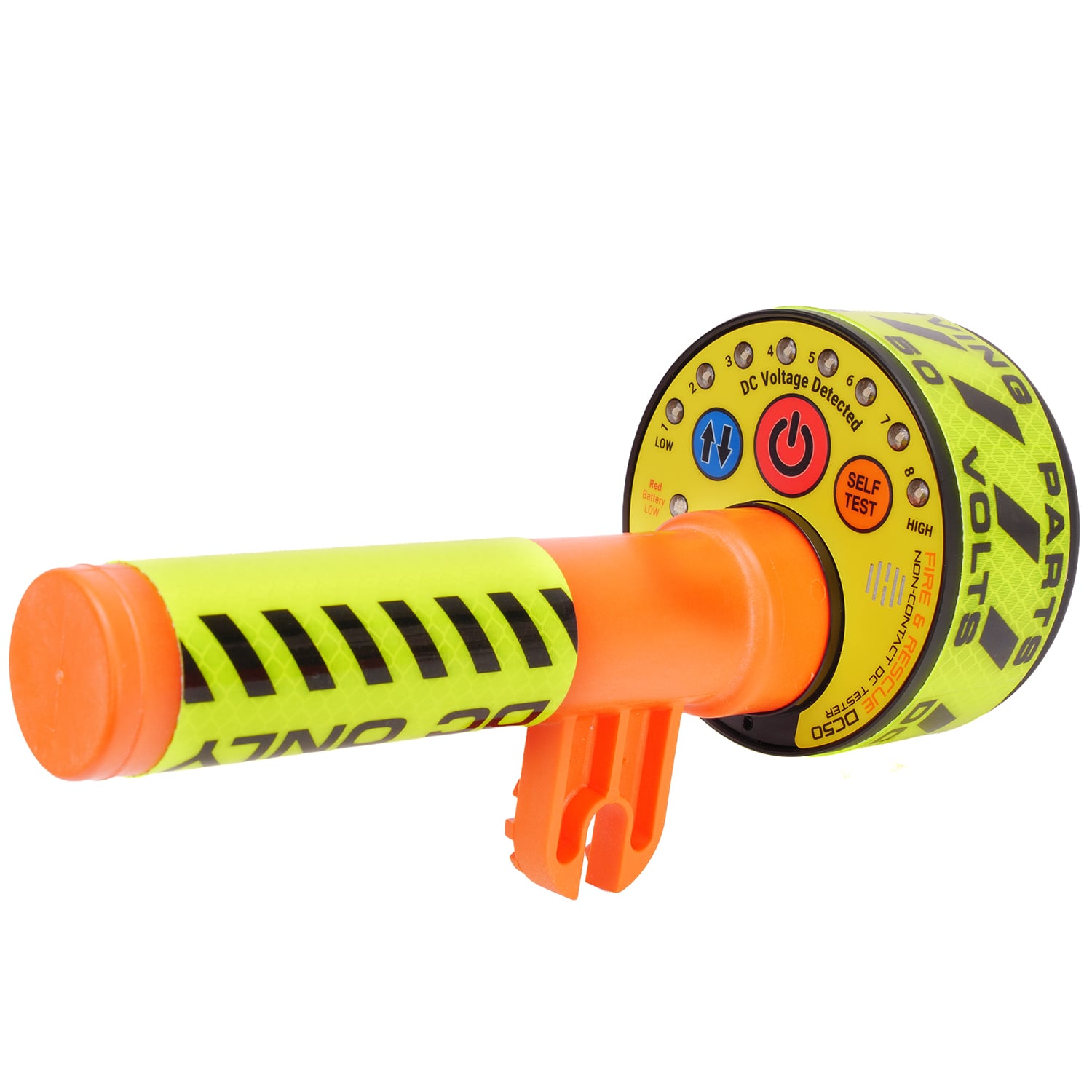

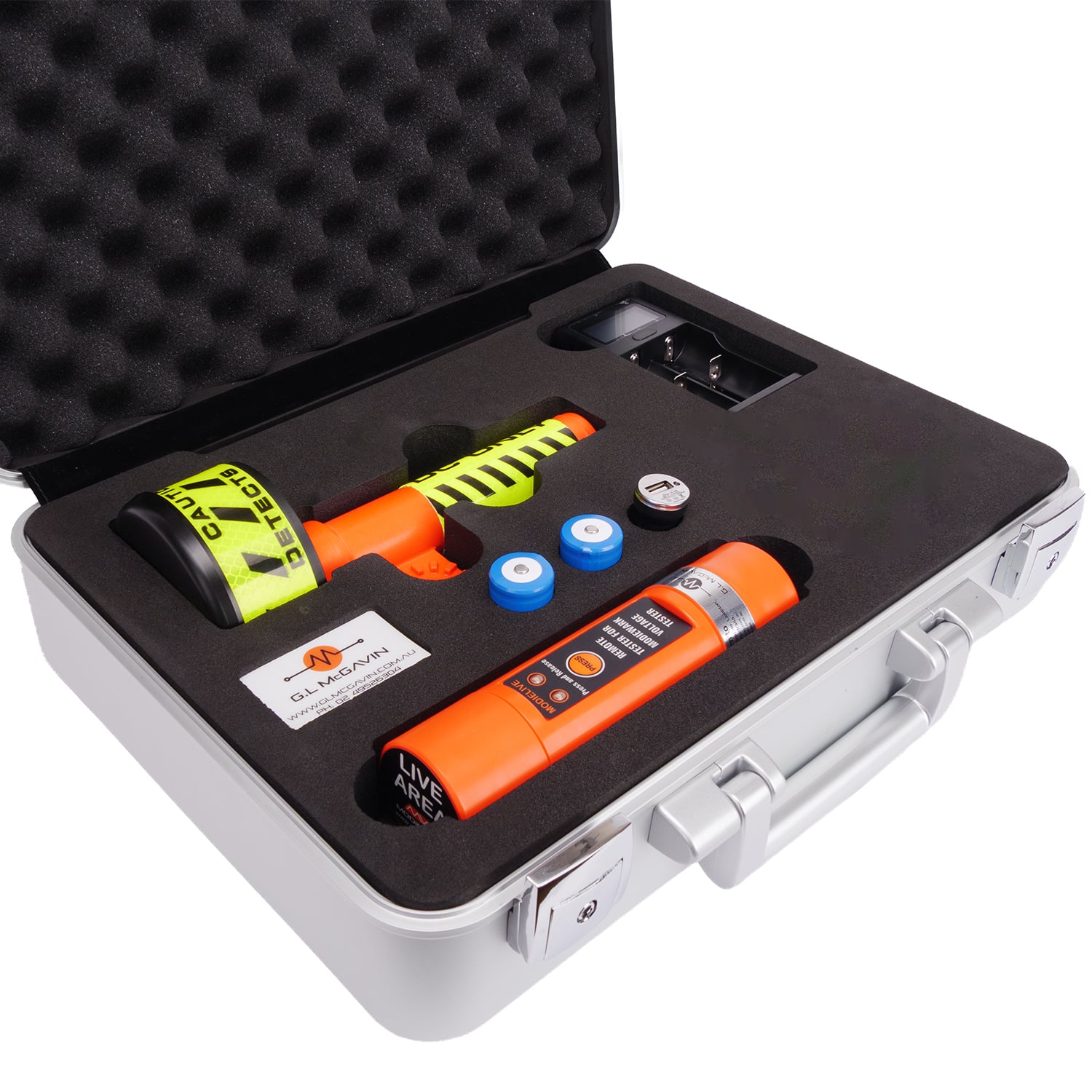

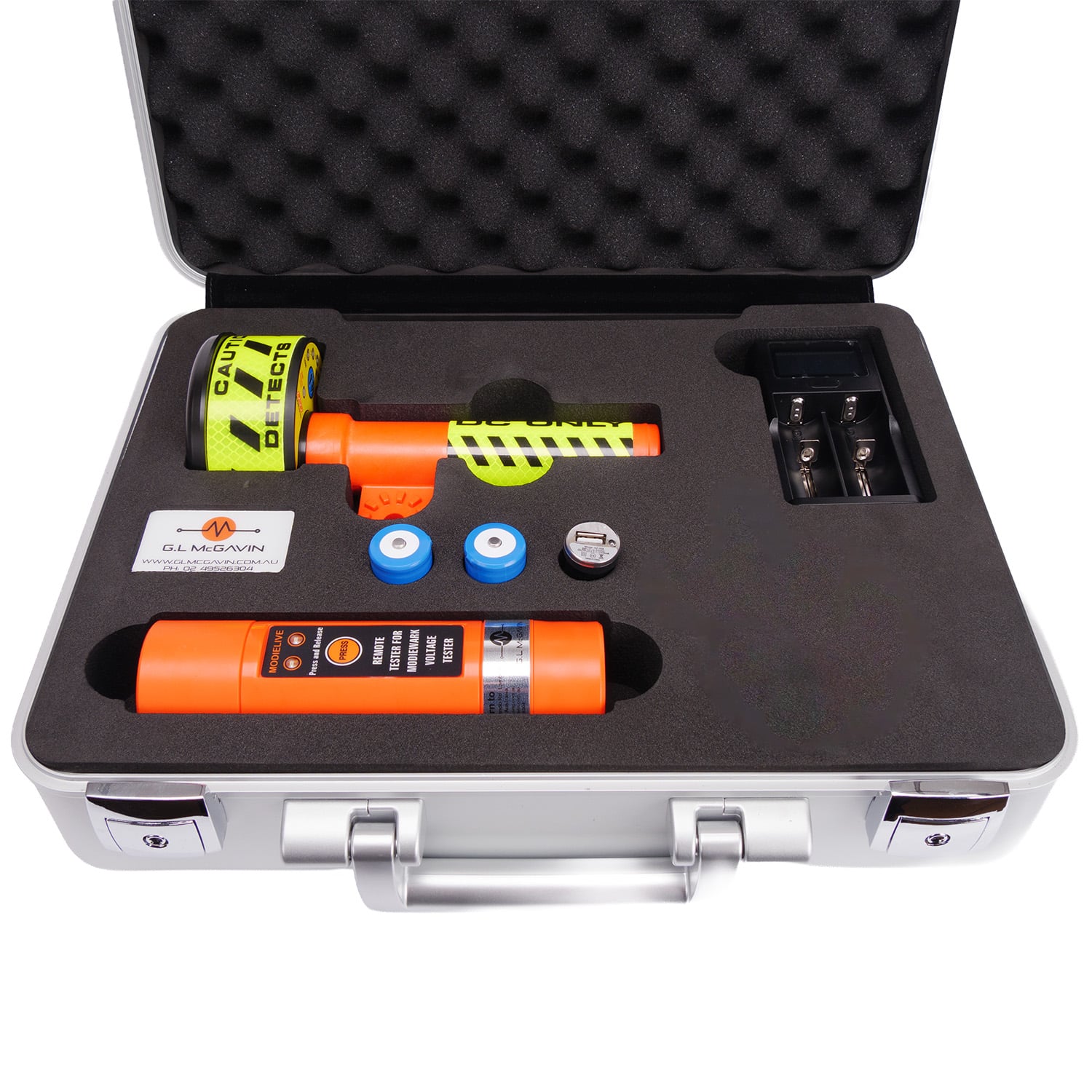

The Fire and Rescue DC50 Non-contact DC Voltage Tester is for emergency service workers. Get within reaching distance of the power source, open the case, remove tester, attach the tester to an extension stick if required, ground the tester on the case to remove any static electricity, point the tester at the potential threat, if the device activates do not proceed. The tester can be used by untrained electrical personnel, where non-touch was vital. Staff can then be in house trained on a safe operating procedure of the tester. The DC50 can be used on solar, electric hybrid vehicles, trains, trams, planes, under mining equipment. The DC50 tester comes in a hard case, orange handle, high and Low setting ,the tester also has Hi-Visual Decals for high visibility.
The need to determine live or dead power is critical for first responders at an incident involving electricity. The Modiewark Fire and Rescue DC50 genuinely allows personnel to safely test for DC electrical fields.
Designed and tested for the emergency rescue services the DC50 works quickly and easily for your safety. Simply point the tester at a potentially live DC source to determine if there is voltage present. The sound it makes will alert you to danger without any need for physical contact. The DC50 is capable of detecting DC voltages from 50 to over 1,000,000 volts.
The DC50 is best suited to identifying live power from:
|Charge Time||2 x batteries 7 Hours|
|Voltage sensing range||50 to ∞ VDC|
8 high intensity Leds
90 db piezo buzzer
-20 to 65 C deg
IEC IP6X (Safe when exposed to heavy rain).
Rechargeable Lithium-ion battery 1-day life in rigorous activity.
ESD POM (Acetyl) Black
Glass filled polypropylene
These values are estimates within 90% for prototype specs.
