$3,562.00
The need to determine live or dead power is critical for first responders at an incident involving electricity. Modiewark’s genuinely non-contact DC50 and AC30 testers allow personnel to test for DC and AC electrical fields. In an emergency, Modiewark delivers safety, swiftness and certainty.
For extra protection, the DC50 tester is fitted with electrical stick to safely extend your reach. The AC30 comes with a sunrise adapter that can also be attached to the electrical stick.
Included:

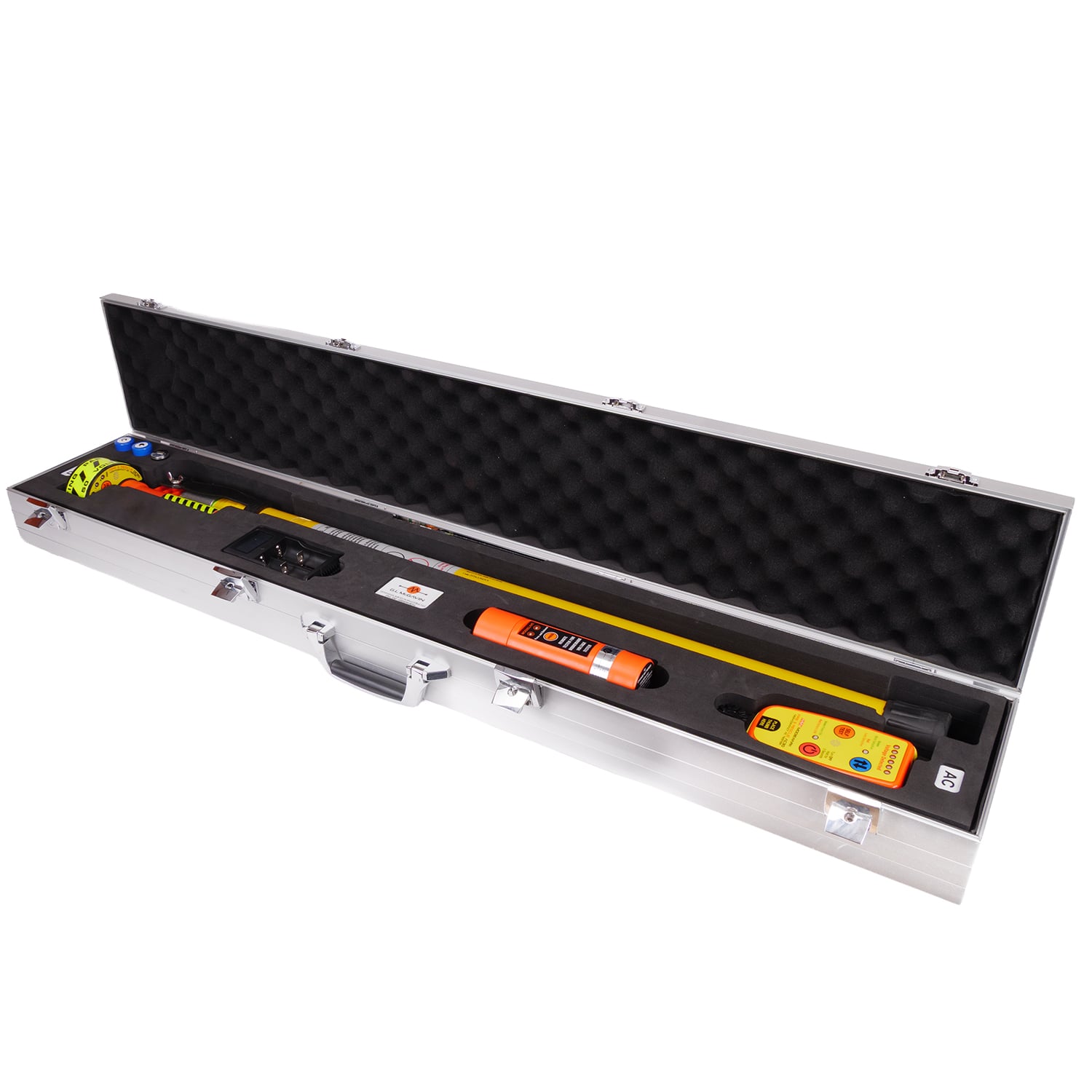

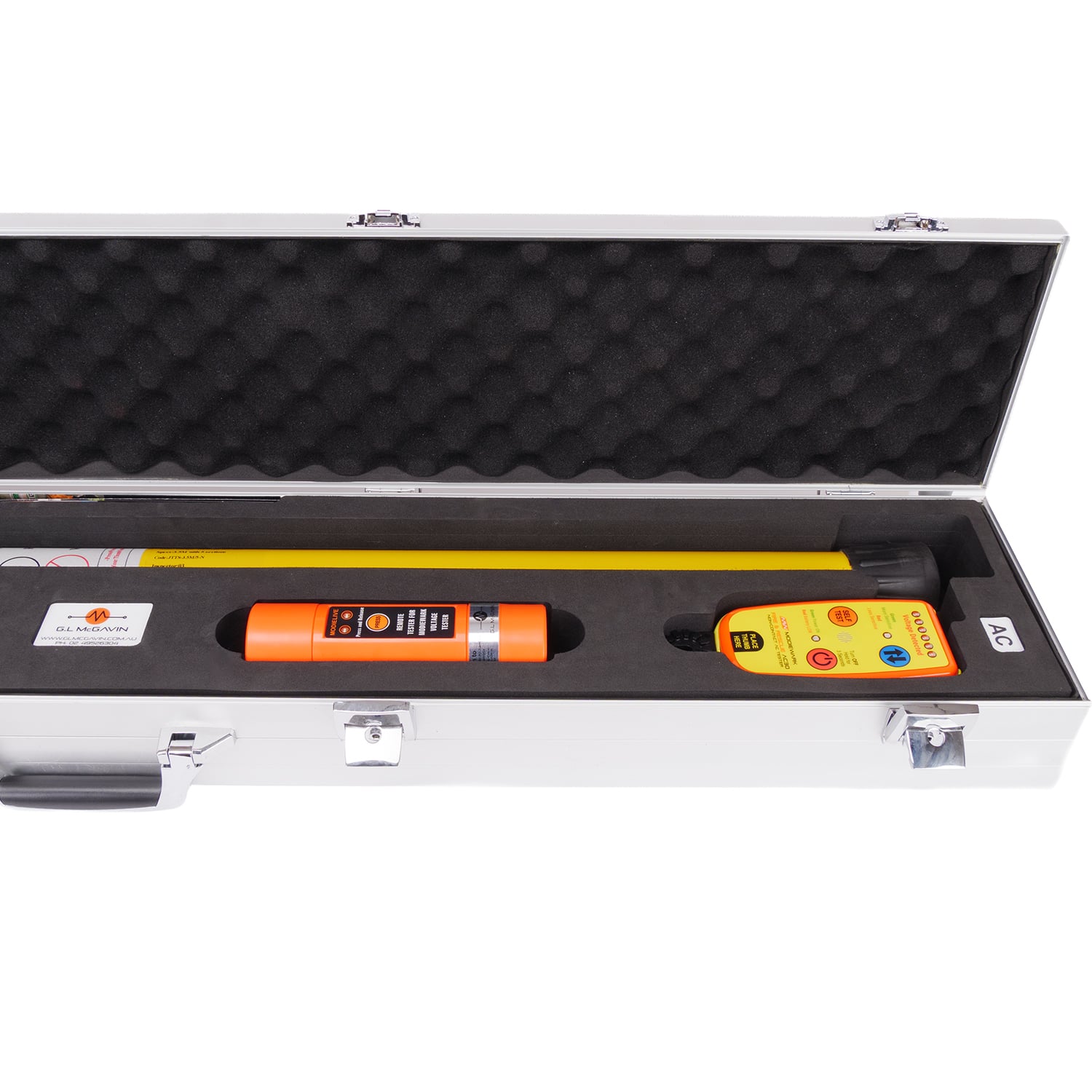

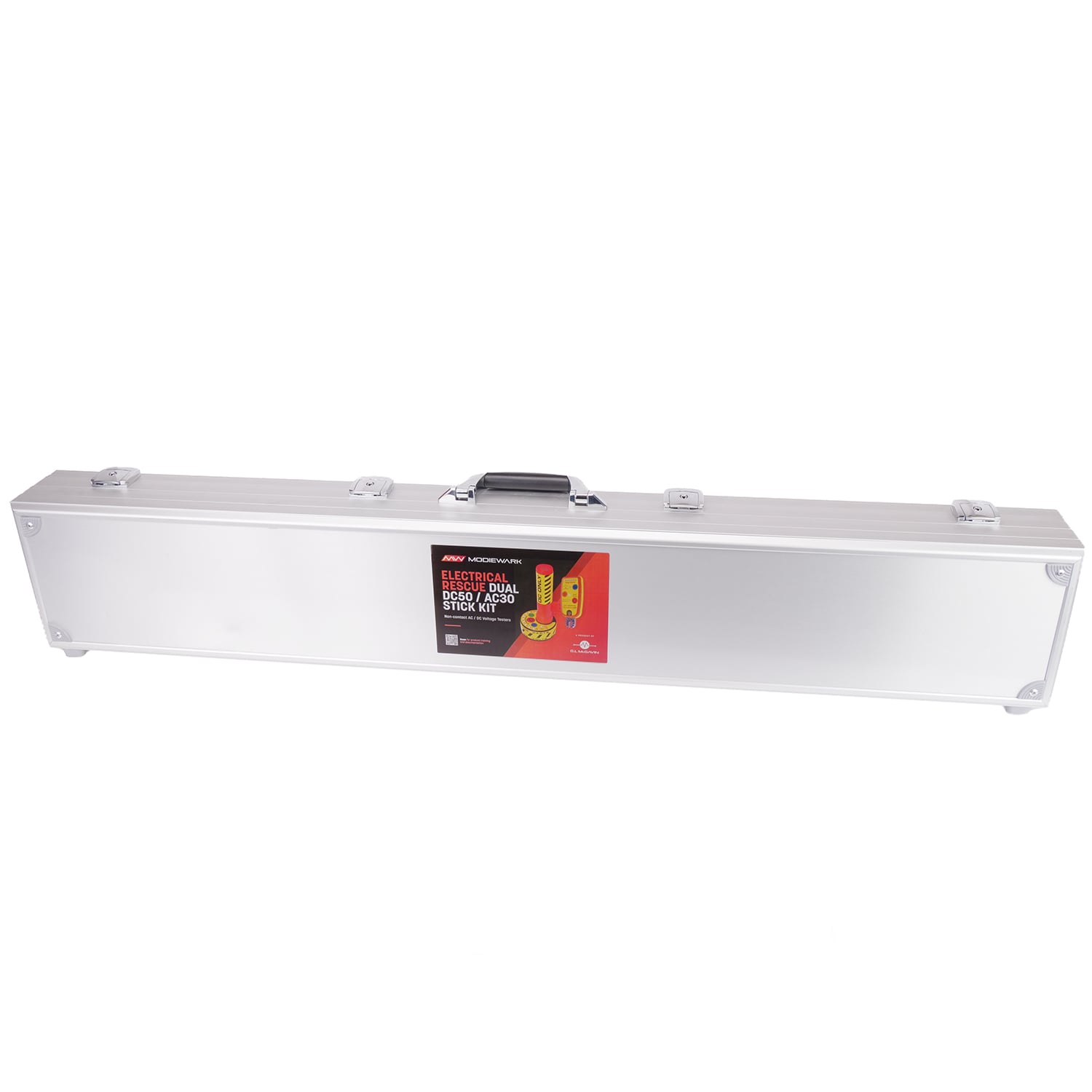

The Modiewark Fire and Rescue DC50 Non-contact DC Voltage Tester comes with a metal grounding case. Whenever an emergency involves DC electricity the DC50 is available for identifying both AC and DC power.
Electrical supply companies within Australia and the United States have been using the original non-contact and contact voltage detector Modiewark for over 30 years in day to day operations, in overhead and underground live or dead determinations. Over that period of time accidents have been reduced as electrical supply staff find that double checking the power has been deactivated a quick and easy task.
The unique properties of the non-contact and contact voltage detector is that no contact needs to be made to the active source. The following range of GL McGavin Modiewark products will save lives in any environmental disaster or accident.
G.L McGavin have been manufacturing High and Low voltage testers since 1975. The new G.L McGavin Digital hand held Proximity Tester AC30 is designed for Electricians, Technicians and the Fire and Rescue departments. For electricians it can be used for picking up live wires behind walls, identifying live cables and tracing live cable runs. For the Fire and Rescue it is used for the safety of the rescue personnel in situations where live voltage can be present impeding rescue operations. Because it is a Digital device it can be programmed to suit any application.
| Size | 225mm Long |
|---|---|
| Charge Time | 2 x batteries 7 Hours |
| Voltage sensing range | 50 to ∞ VDC |
| Light source | 8 high intensity Leds |
| Sound source | 90 db piezo buzzer |
| Operating temperature | -20 to 65 C deg |
| Water Resistance | IEC IP6X (Safe when exposed to heavy rain). |
| Weight | 750 g |
| Power System | Rechargeable Lithium-ion battery 1-day life in rigorous activity. |
| Battery Life | 7 hours |
| Cap Material | ESD POM (Acetyl) Black |
| Warranty | 1-Year |
| Handle Material | Glass filled polypropylene |
| Voltage sensing range | 20 volts AC to 500 K volts AC |
|---|---|
| Light source | High intensity LED |
| Sound Source | Piezo 4000KHz 90 dB @ 10cm (3.937’) |
| Operating temperature | -20 to 65˚C (14 to 149°F) |
| IP rating | IP 66 (Testing not Completed) |
| Weight (no Batteries) | 140g (4.93 oz) |
| Dimensions | L 40 mm (5.51’) x W 73 mm (2.87’) x H 23 mm (0.9’) |
| Battery | 4* AAA Alkaline / Lithium |
| Battery life (AAA Alkaline) | ON (no alarm) 30+ Hours ON (alarm on) 8+ Hours OFF 3 Months |
| Battery life (AAA Lithium) | ON (no alarm) 40+ Hours ON (alarm on) 10+ Hours OFF 3 Months |
| Shock Proof | Rubber mount around case |
| Self test | Independent Built in |
| Belt clip (option) | Attached to rear of case (Customer Request) |
| Range detection | LED Indication Weak Signal to Strong signal. |
| Voltage range | Two Settings Less sensitive and More sensitive. |
| Large buttons | 15mmØ for Glove operations |
| Secure battery housing | (fours crews) Tool Access |
| Custom colours | On Customer Request |
| Custom decals | On Customer Request |
These values are estimates within 90% for prototype specs.
Send through an enquiry and an experienced Modiewark team member will get back to you ASAP.
