Industrial DC80-Modiewark AC Stick Kit

$4,275.00

AUD

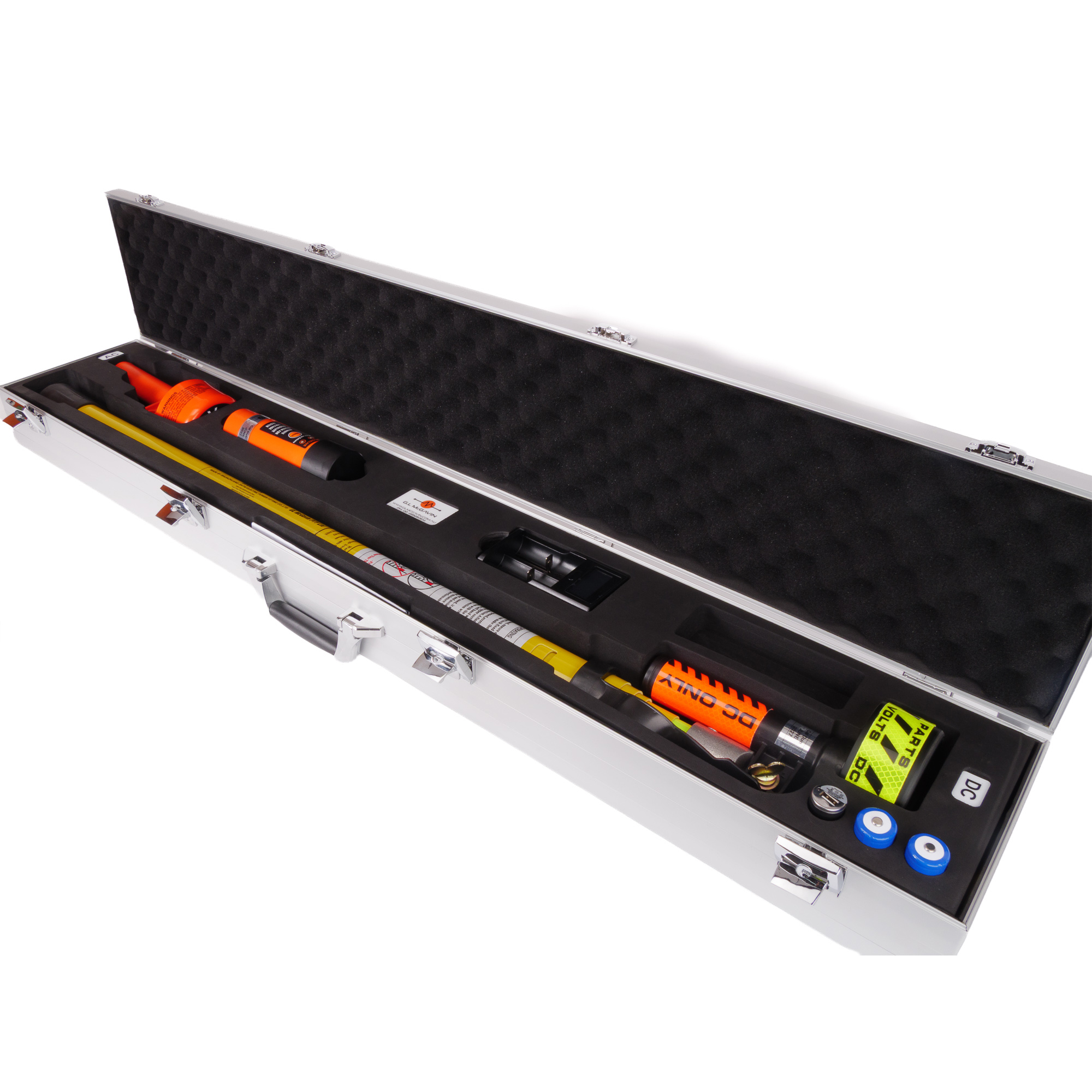

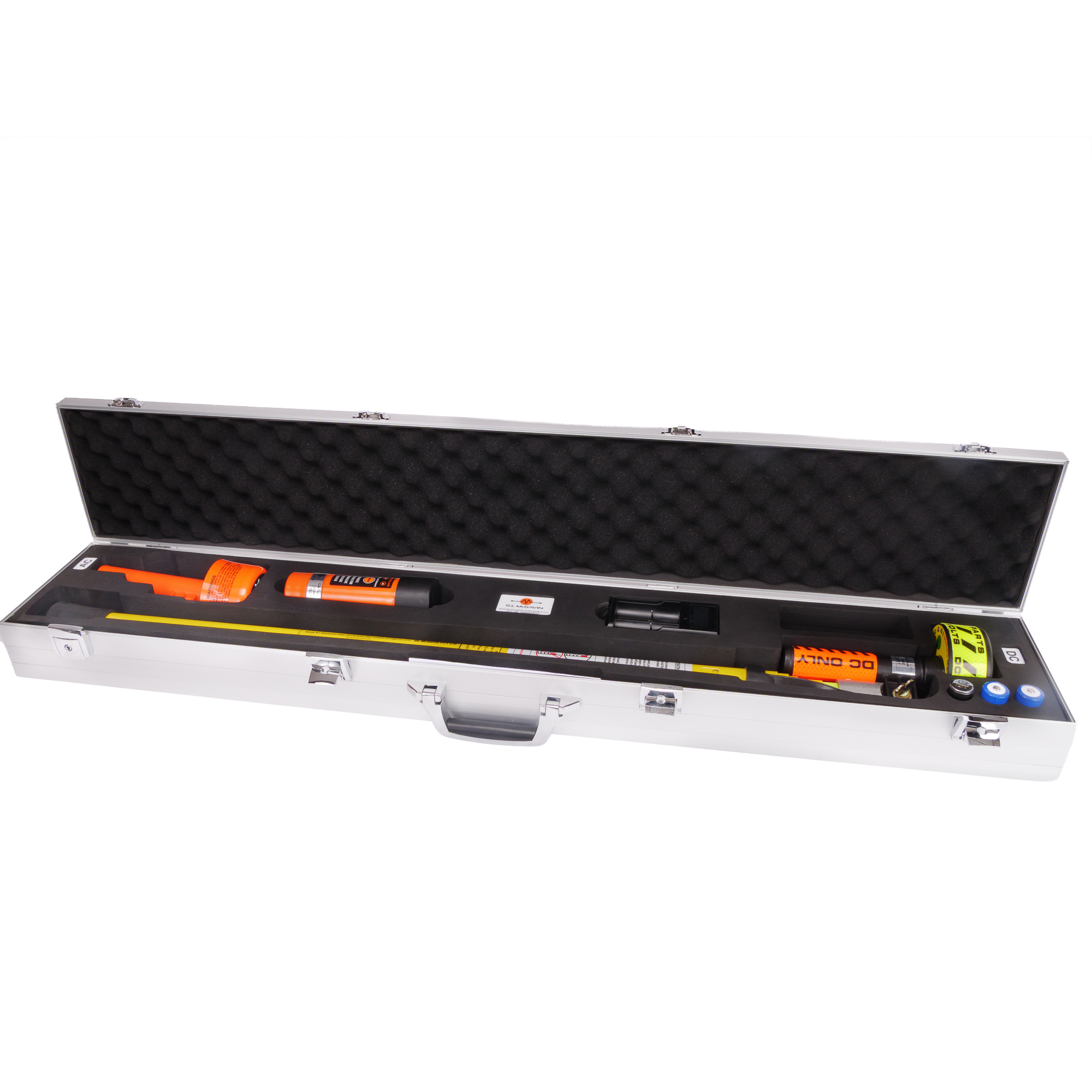

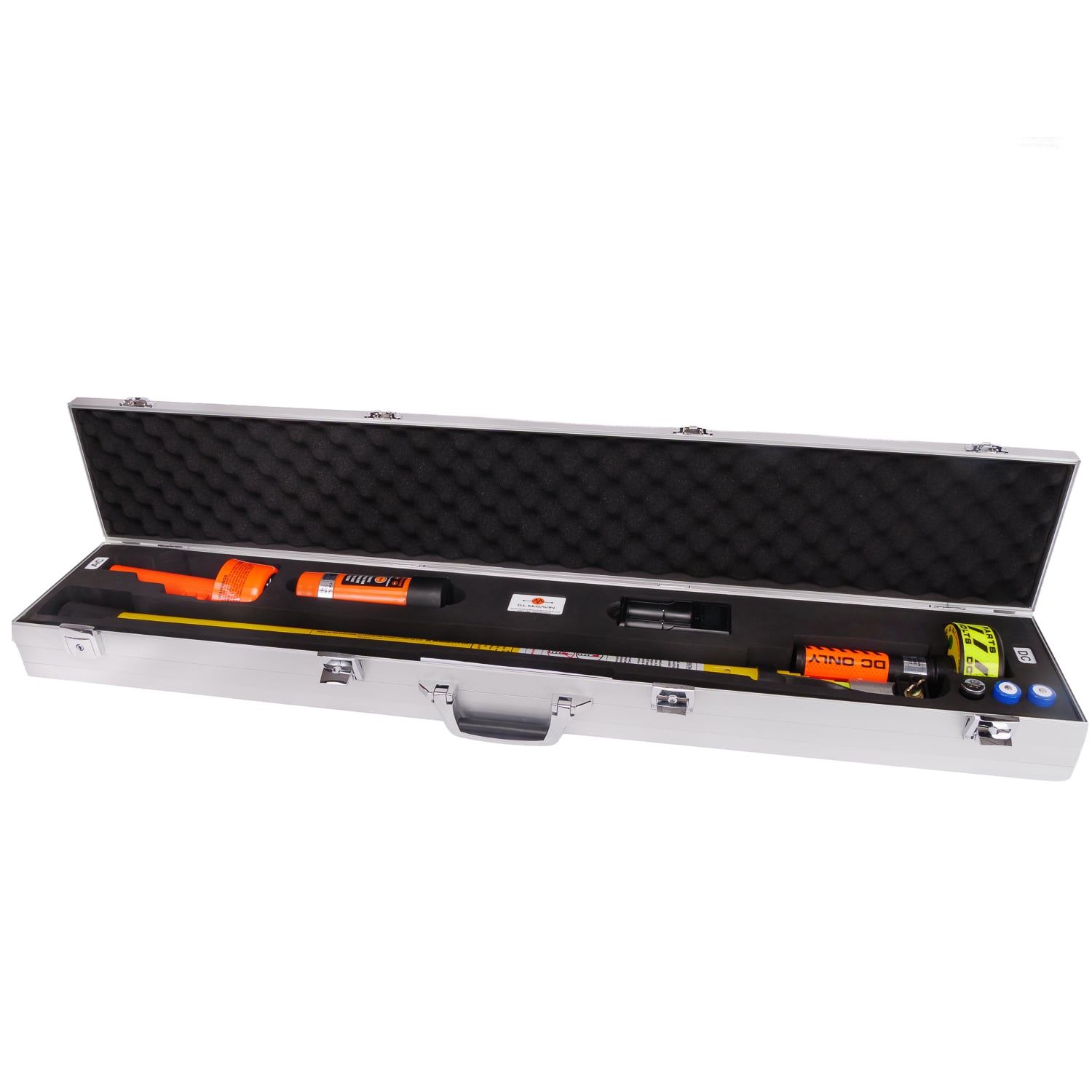

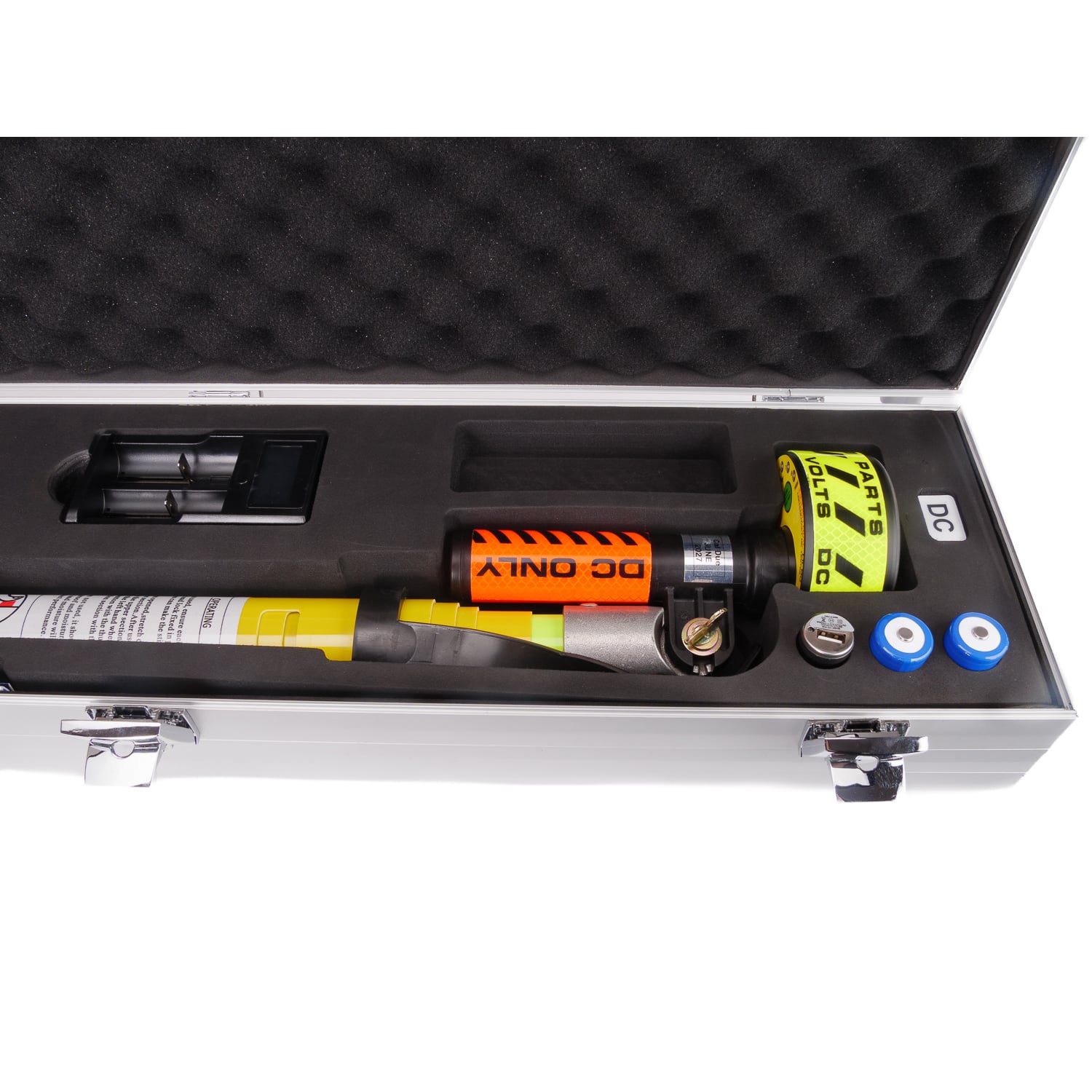

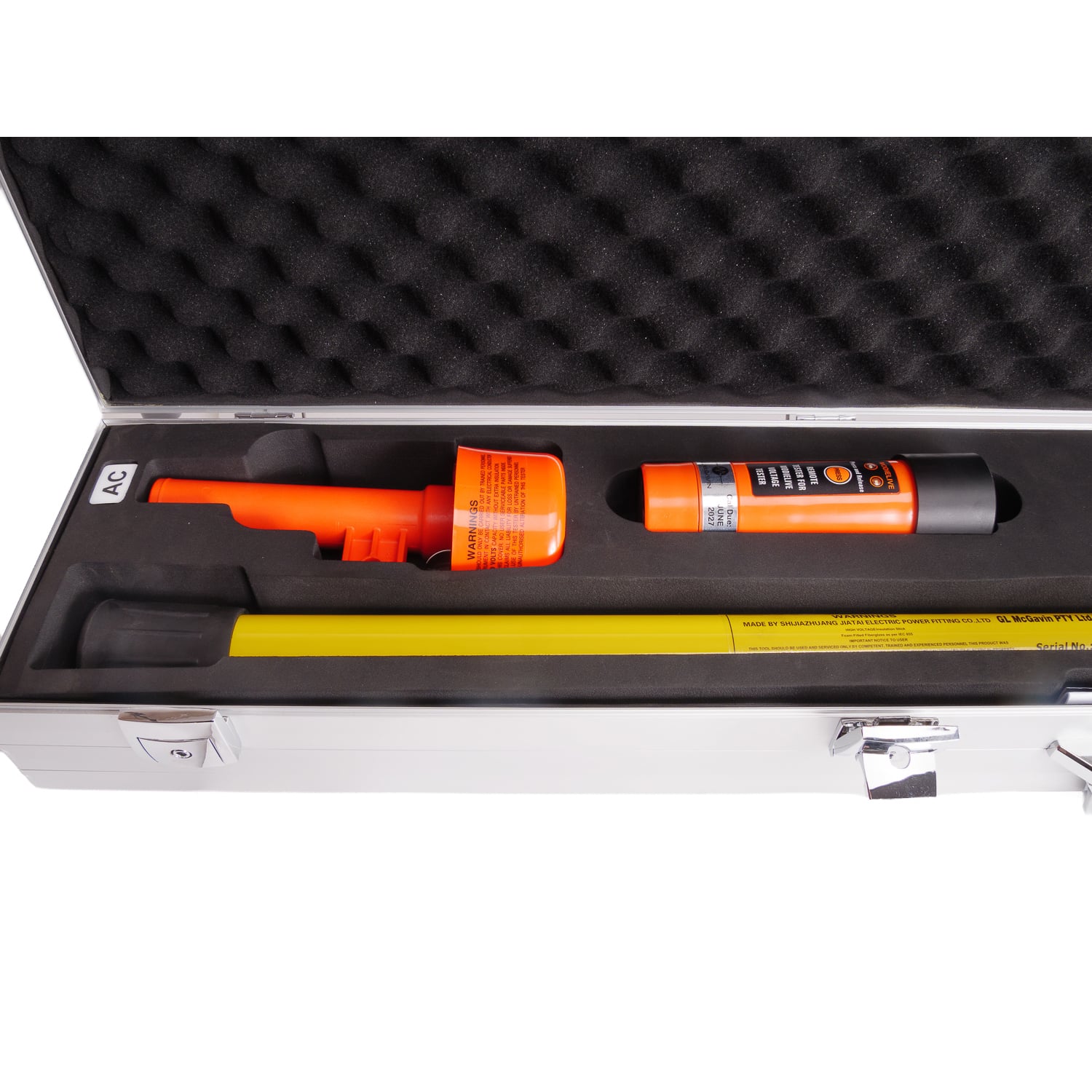

This kit comes with the DC80 tester and a high voltage AC tester IN an easy fit metal suitcase. Kit includes AC and DC tester batteries and charger.

Included:

  • Industrial DC80 non-contact tester
  • 1 x telescoping electrical stick to 4 meters
  • Modiewark
  • Modielive EMF Generator
  • DC battery charger
  • 4 x 26650 batteries
  • 3 X C batteries
  • Car charger

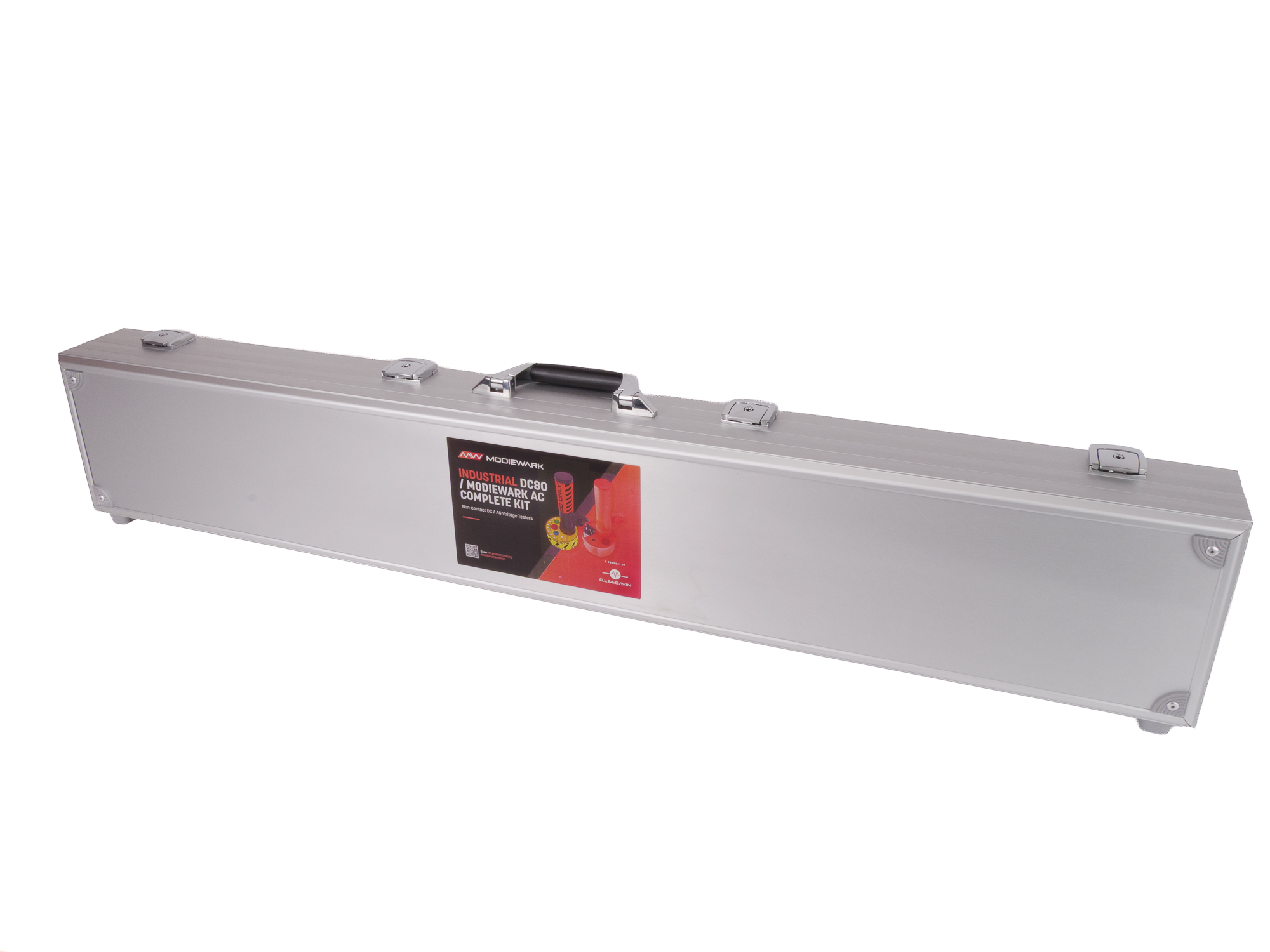

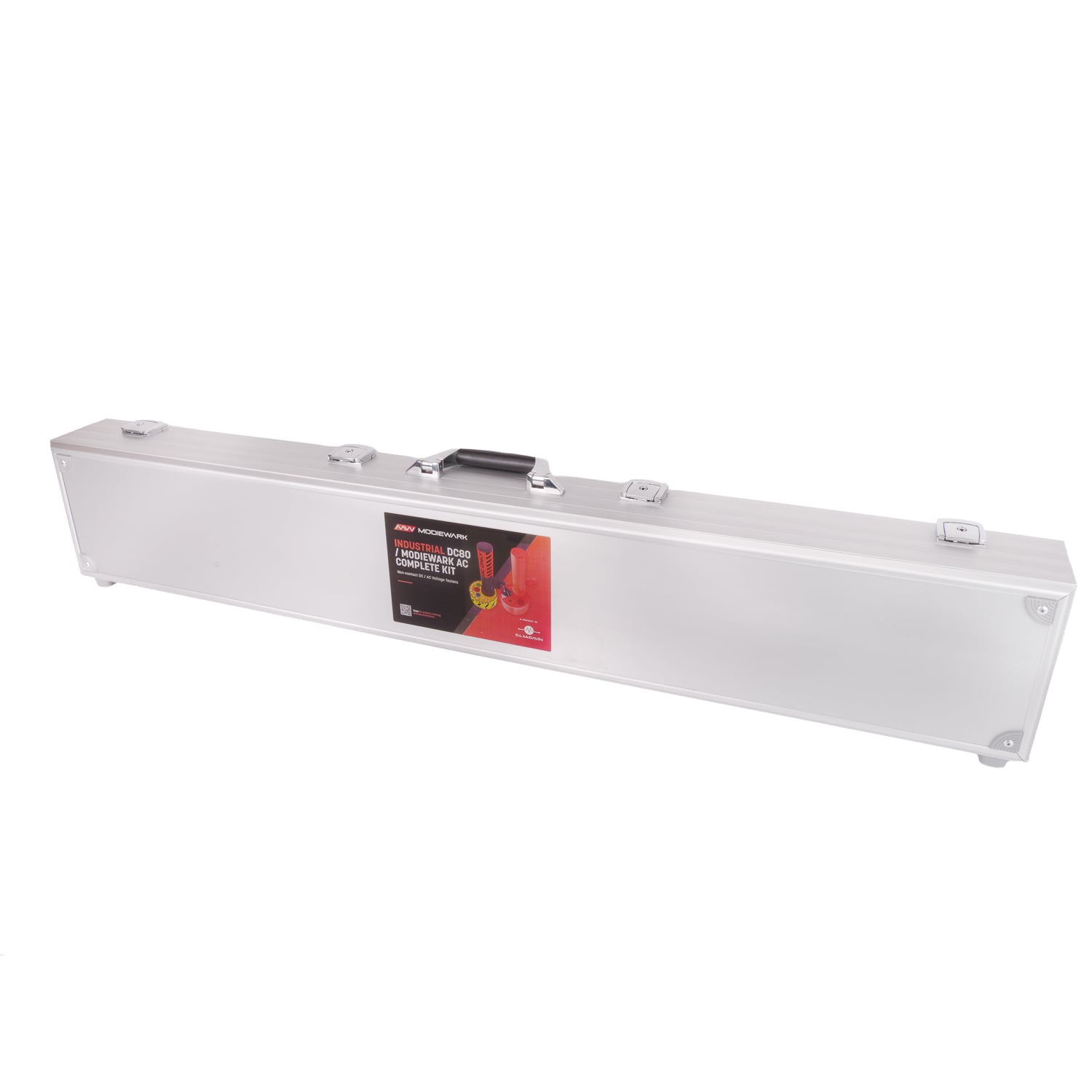

  • Padded hard metal carry case
Clear

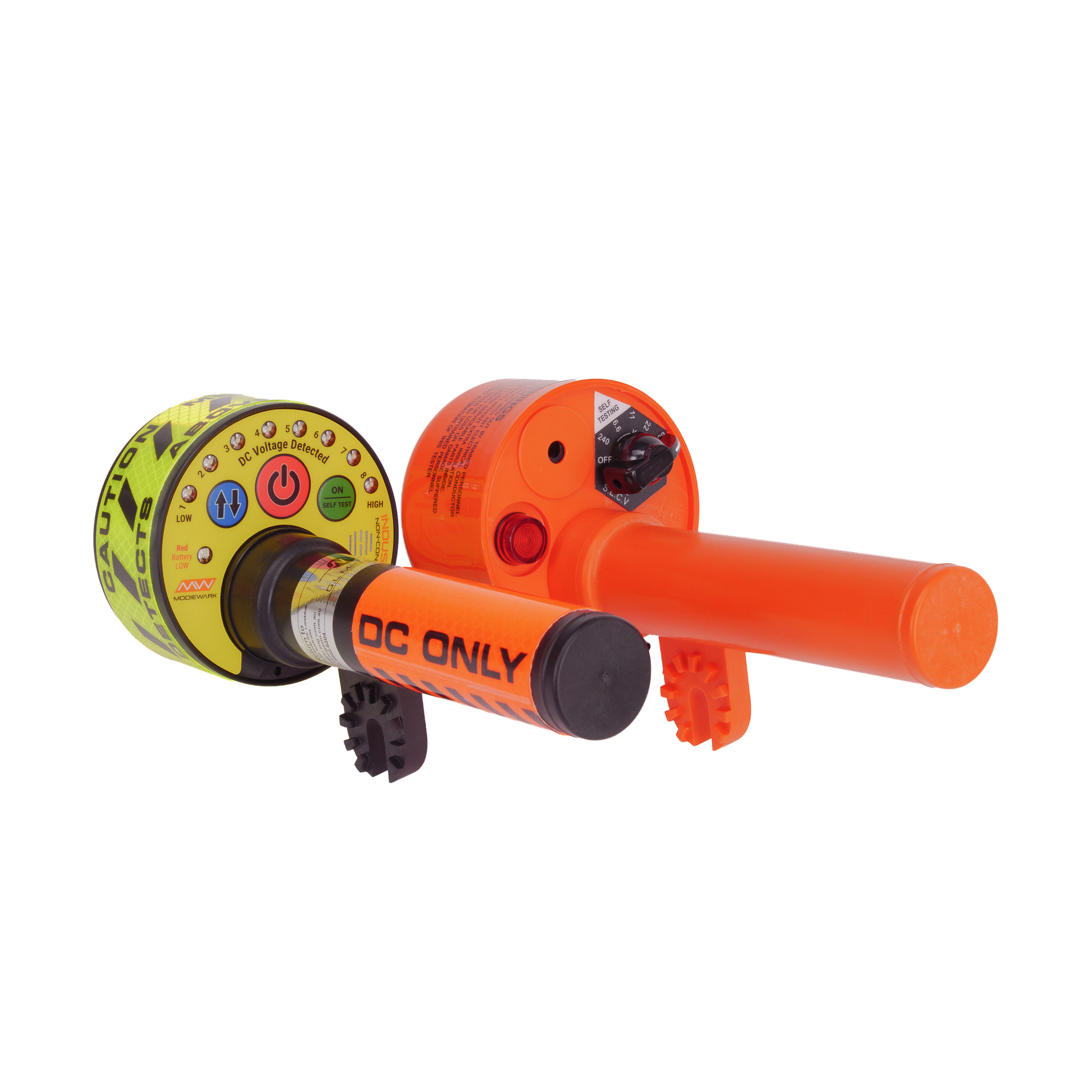

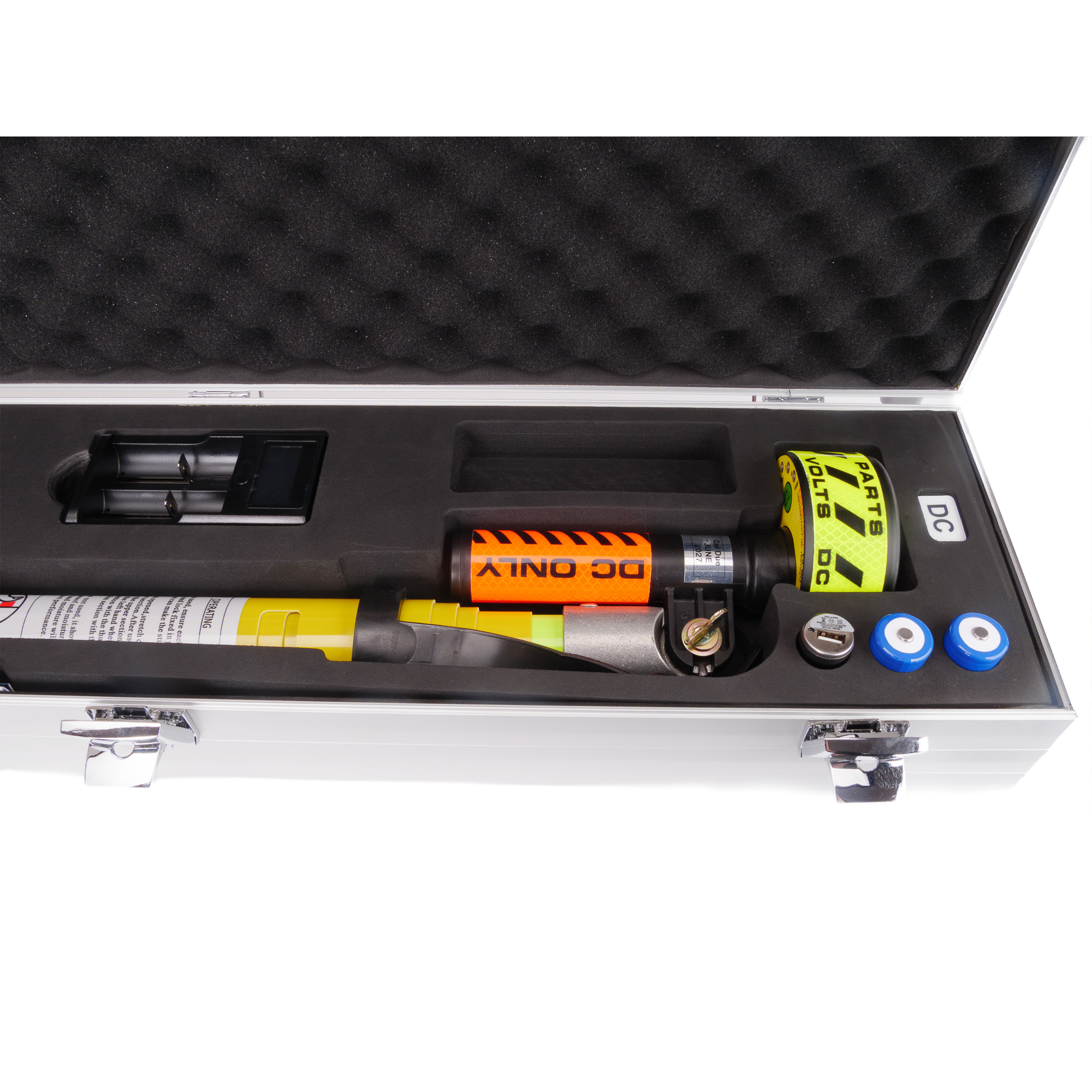

Industrial DC80 Non-contact DC Voltage Tester

Specifically designed for direct current detection in industrial environments, the non-contact DC80 is a global breakthrough.
It is the world’s first genuine DC non-touch voltage tester. Safe, fast and reliable.

Simply point the tester at a potentially live DC source to determine if there is voltage present. The sound it makes will alert you to danger without any need for physical contact. It has 8 adjustable sensitivity settings, meaning the operator can adjust it to voltages from 50 volts to over 1,000,000 volts. The Modiewark is the safest choice, in any environmental disaster or accident. Modiewark is the only product in the world to offer a truly non-touch DC tester you can rely on.
The DC80 is a must have when working with DC power on:

  • Trains and trams
  • Sub-stations
  • Wind-turbines
  • Solar generation equipment
  • Mining equipment

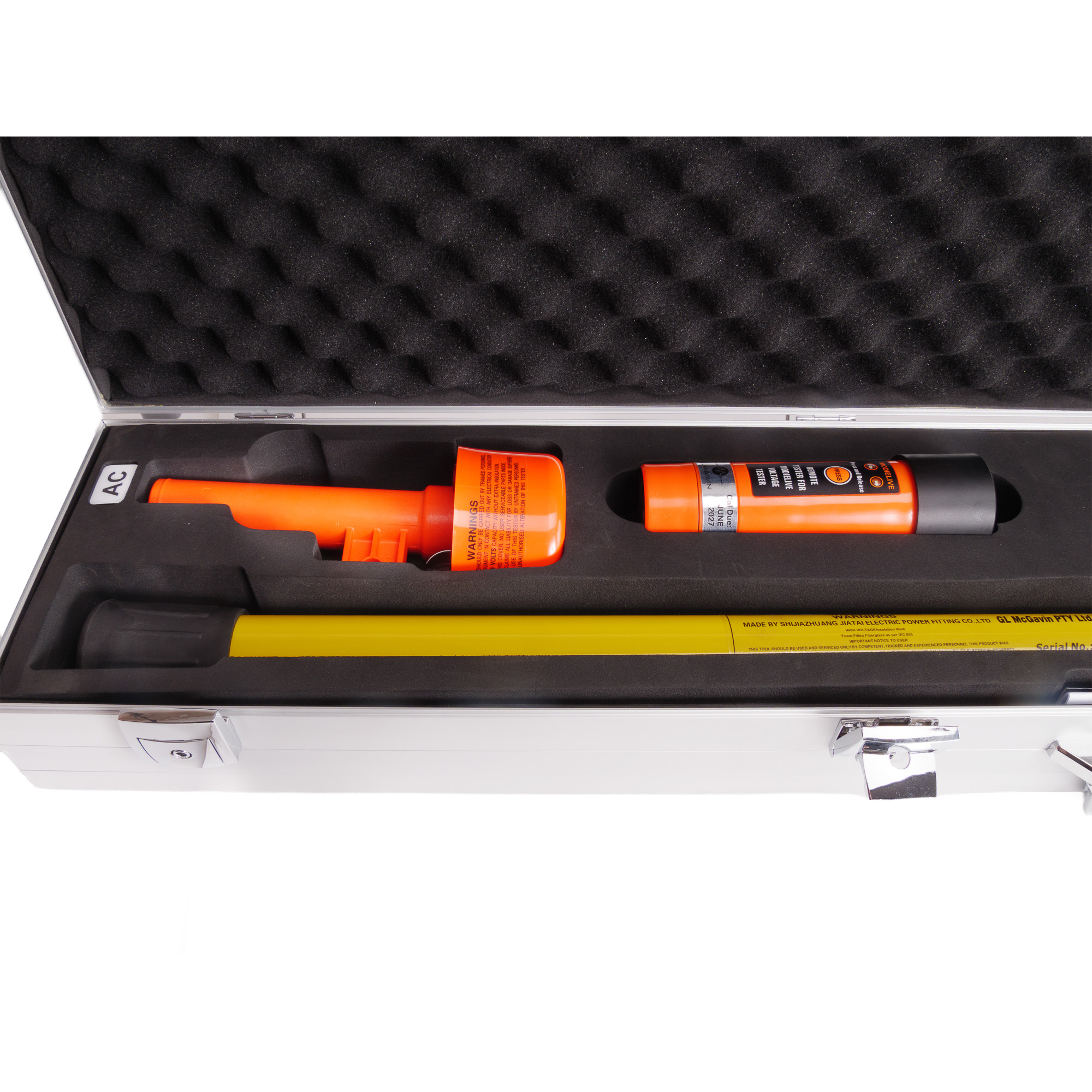

Modiewark AC Non-contact AC Voltage Tester​

Designed for all industries that use AC electricity, the Modiewark AC comes in an array of voltage settings for any environment… from 50 to over a million volts
The Modiewark has been used by industry professionals since the early 70’s for live or dead voltage determination of overhead power lines and underground power at URD test points.

The Modiewark AC has two main functions, firstly as a proximity device to determine live or dead situations and then as a touch device to verify the tester has physically reached the AC field around designated mains under test.

The unique nature of the sensor plate within the unit allows for directional checks such as checking low voltage when high voltage is nearby. Induced voltages on isolated conductors are checked by increasing the Modiewark’s sensitivity.

The Modiewark AC is a must have when:

  • Identifying live conductors
  • Fault finding in flexible cables
  • Checking equipment grounding
  • Neon lighting servicing
  • Tracking live wires
  • Phasing conductors
  • High frequency radiation detection

The Modiewark non-contact voltage tester can be manufactured with a selection of voltages ranging from 110/240 volts to 750 kilovolts.

We provide a selection of common voltages in our standard range shown below. Custom voltages ranges can be provided per customer’s request through consultation with our helpful sales staff.

Voltage levels stated are between phase voltages. Voltages displayed in bold are URD test point settings.

For our customers in the USA and Canada, please contact Salisbury by Honeywell for the American and Canadian voltage range.  www.salisburybyhoneywell.com

If you would like to Purchase an Australian model, select from our range below to go to our shopping cart.



ModelSelectable Voltages
ModelSelectable Voltages
S4AOFF, 240V, 2kV, 6.6kV
S4BOFF, 240V, 2kV, 6.6kV, 11kV
S4COFF, 240V, 2kV, 5kV, 11kV
AISOFF, 240V, 1kV, 6.6kV, 33kV
VROFF, 240V, 2.2kV, 6.6kV, 11kV, 22kV
SECVOFF, 240V, 6.6kV, 11kV, 22kV, 66kV
MWBOFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV
RTCOFF, 240V, 5kV, 6.6kV, 11kV, 12.7kV, 22kV, 33kV
S9OFF, 240v, 2kV, 11kV, 22kV, 33kV, 66kV, 132kV, 330kV
S9SAOFF, 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV
CSAOFF, 240V, 4.2kV, 15kV, 25kV, 35kV, 69kV115kV, 230kV
NZOFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV, 110kV, 220kV
SEAQOFF, 240V, 3.3kV, 6.6kV, 11kV, 33kV, 66kV, 110kV, 275kV
ETSAOFF, 240V, 3.3kV, 7.6kV, 11kV, 33kV, 66kV, 132kV, 275kV
NMOFF, 240V, 1kV, 3.3kV6.6kV, 11kV, 22kV, 33kV
NRCCOFF, 240V, 1kV, 3.3kV, 6.6kV, 11kV, 33kV, 66KV, 132kV
WA1OFF, 240V, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV, 132kV
S7OFF, 240V, 2kV, 11kV, 22kV, 33kV, 66kV
S7AOFF, 240V, 11kV, 33kV, 66kV, 132kV, 330kV
CIGOFF, 240V, 415kV, 3.3kV, 6.6kV, 11kV, 22kV, 33kV, 66kV
ABCOFF, 240V, 11kV, 33kV, 66kV, 132kV
VRSOFF, 240V, 1kV, 2.2kV, 6.6kV, 11 kV, 22kV
HECOFF, 240V, 6.6kV, 11 kV, 22kV, 44kV, 88kV, 110kV, 220kV
WRAOFF, 240V, 4.2kV, 15kV, 25KV, 35kV, 48kV, 69kV, 15kV, 25kV, 35kV
RTCOFF, 240V, 5kV, 6.6kV, 11KV, 12.7kV, 22kV, 33kV
VRSOFF, 240V, 1kV, 2.2kV, 6.6KV, 11kV, 22kV
S10AOFF, 240V, BATT, 4.8kV7.2KV16kV, 2.4/4.2kV, 4.8/8.3kV, 8.0/13.8//7.2/12.5kV , 14.4/25//16/27.6kV, 44kV, 69kv
S11AOFF, 240V, 2.4/4.2kV, 4.8/8.3kV, 7.2/12.5KV, 8/13.8kV, 14.4/25kV, 16/27.9kV, 44kV, 69kV, 115kv, 500kv
CUSTOMChoose your own voltage combinations

These  Modiewark models shown above are for Australian power lines. For more Information on American models please visit  SailsburybyHoneywell.com

DC80 Specifications

Size225mm Long
Charge Time2 x batteries  7 Hours
Voltage sensing range 50 to ∞ VDC
Light source

8 high intensity Leds

Sound source

90 db piezo buzzer

Operating temperature

-20 to 65 C deg

Water Resistance

IEC IP6X (Safe when exposed to heavy rain).

Weight

750 g

Power System

Rechargeable Lithium-ion battery 1-day life in rigorous activity.

Battery Life

7 hours

Cap Material

ESD POM (Acetyl) Black

Warranty

 1-Year

Handle Material

Glass filled polypropylene

These values are estimates within 90% for prototype specs.

Modiewark AC

Voltage sending range50V AC to 750kV AC
Light sourceThree High Intensity LEDs
Sound sourceElectromagnetic piezo 85 dB @ 5cm (1.9″)
Operating temperature-40 to 65c (-40 to 149F)
IP rangeIP 63
Weight900g (without batteries)
DimensionsLength: 230mm

Width: 65.85mm (9″)
Cap diameter 90mm (3.5″)

Spout Tester

Voltage setting range3 x C size Alkaline
Positive to handle thread
DimensionsLength: 240mm + spout length
Width: 65.85mm (9″)
Cap diameter: 90mm (3.5″)
Weight: 1.2kg (150mm spout)

Batteries

Battery type50V AC to 33kV
Battery life(standard C size Alkaline)
ON (no alarm) 140+ Hours
ON (Self test) 90 + Hours
ON (alarm on) 60+ Hours
OFF No current drawn, battery shelf life
